Product Model | MGJZ40 | MGJZX40 |
---|---|---|
Rated Lifting Weight(t) | 40(Under Hoisting Device) | 40(Under Hoisting Device) |
Rail Torque(m) | 35 | 35 |
Effective cantilever(m) | 8.7(Both Sides) | 8.7(Both Sides) |
Lifting Height(m) | 16.5 | 12.5 |
Crane Working Level | M7 | M7 |
Max lifting Velocity(m/min) | 15 | 15 |
Gantry Traveling Velocity(m/min) | Full Load≥35 | Full Load≥40 |
Trolley Traveling Velocity(m/min) | Full Load≥55 | Full Load≥50 |
Slewed Trolley Velocity(round per minute) | no | 1.5~2 |
Max Wheel Pressure(In the Worst Working Condition )(t) | ≤20 | ≤25 |
Anti-shaking Device | Flexible Anti-shaking | Flexible Anti-shaking |
Hoisting Device | 20ft 、 40ft Fixed Lead Board Liquid-press Flexibility | 20ft 、 40ft Fixed Lead Board Liquid-press Flexibility |
Power Supply | 3-Phase 4Line Lead Power Supply: 380v 50Hz | 3-Phase 4Line Lead Power Supply: 380v 50Hz |
Environment Temperature | -10℃ —+ 45℃ | -10℃ —+ 45℃ |
Max Relative Humidity | 90% | 90% |

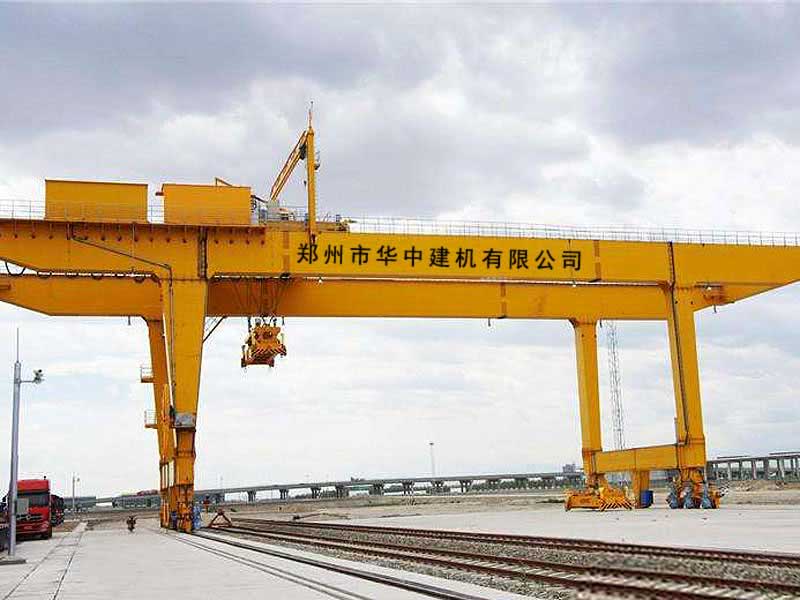

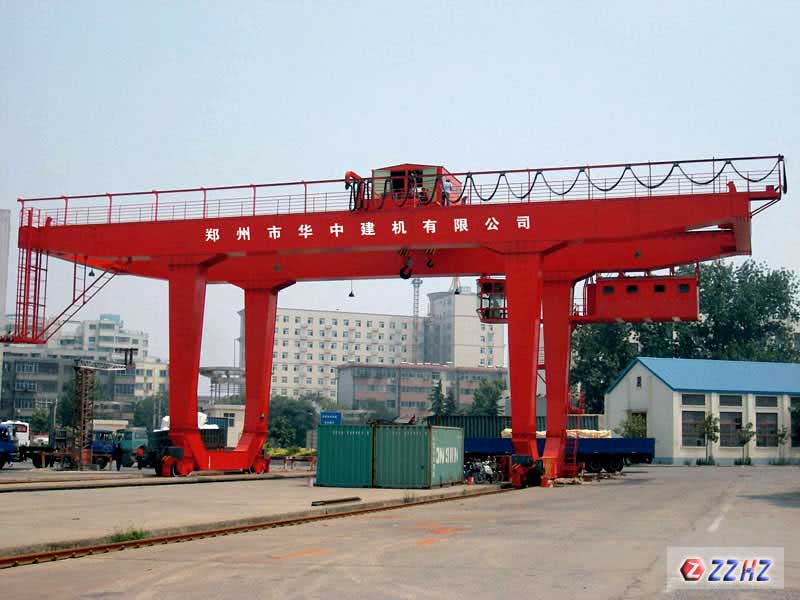

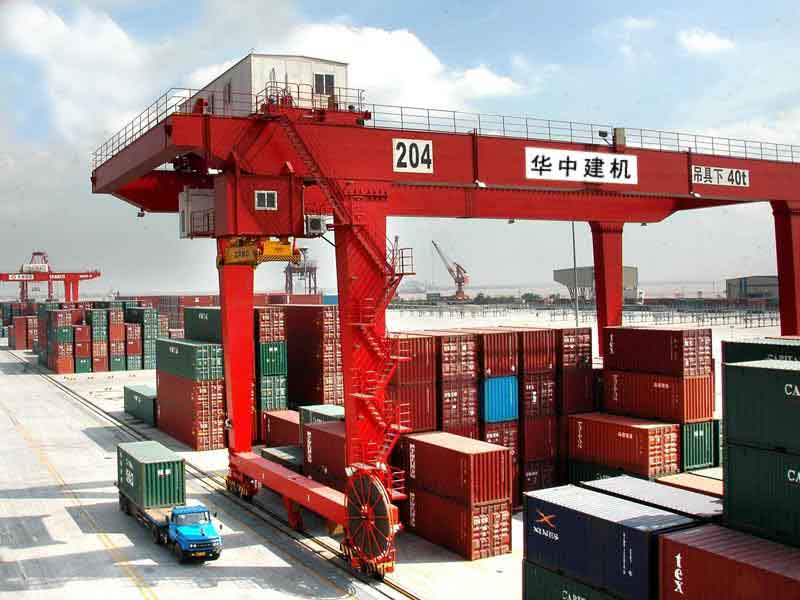

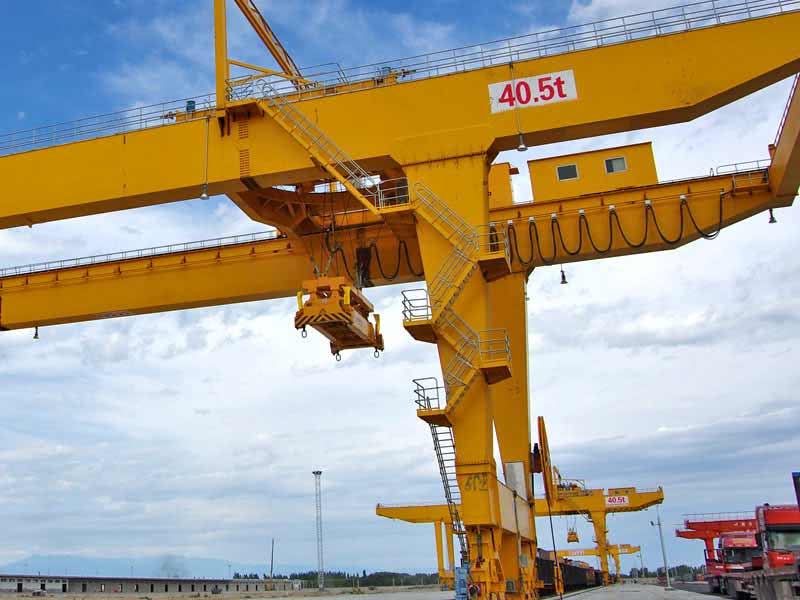

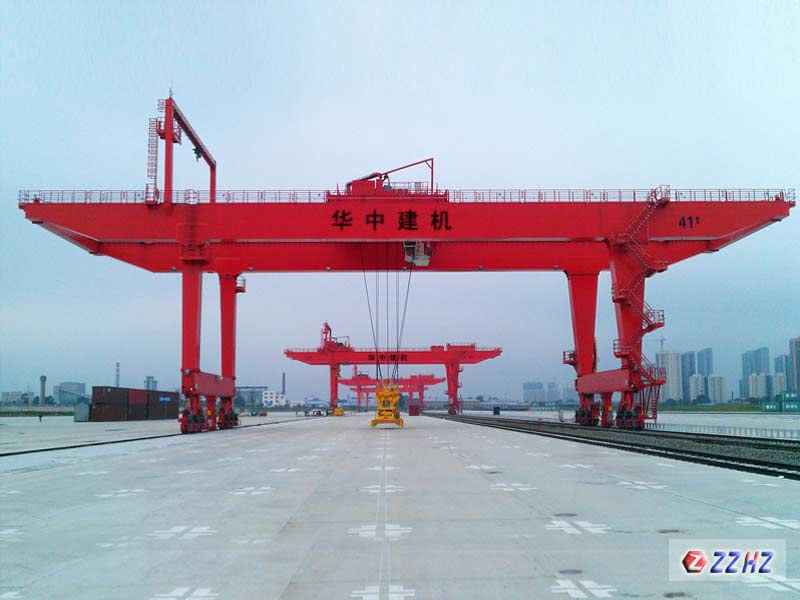

MGjz 갠트리 크레인주로 철도 컨테이너 운송장 및 대형 컨테이너 보관소에서 컨테이너의 적재 및 하역, 취급 및 적재에 사용됩니다. 크레인은 레일을 따라 이동합니다.
1, 리프팅 및 이동 속도가 빠름.
2, 양쪽에 외팔보를 사용하면 작동 범위가 넓어집니다.
온도 : -25 ~ + 40 ℃
